ISO 15552
Steel mounting parts for pneumatic cylinders
Series of steel mounting parts for cylinders according to ISO 15552 standards from ∅32 to ∅320. MP2, MP4 hinges, RP107P CETOP joint, with articulated head, flange, intermediate supports and hinges.
Available finishes: White galvanising, cathodic dipping, nickel plating and anodising.
NARROW MP2 FEMALE HINGE
Order code:
0013 / diam.
NARROW MP2 FEMALE HINGE 0013/diam. 160÷250
Order code:
0013 / diam.
MP4 NARROW REAR MALE HINGE WITH DIN 648K ARTICULATED HEAD
Order code:
0018 / diam.
MP4 NARROW REAR MALE HINGE WITH DIN 648K ARTICULATED HEAD 0018/diam. 160÷250
Order code:
0018 / diam.
SQUARE JOINT WITH DIN648K ARTICULATED HEAD
Order code:
0011 / diam.
SQUARE JOINT WITH DIN648K ARTICULATED HEAD 0011/diam. 160÷250
Order code:
0011 / diam.
MP2 FEMALE HINGE
Order code:
0017 / diam.
MP2 REAR FEMALE HINGE PIN
Order code:
0007 / diam.
MP4 MALE HINGE
Order code:
0019 / diam.
RP107P SQUARE JOINT/AB7 90° TIE ROD
Order code:
0005 / diam.
RP107P SQUARE JOINT FOR DIN 71752 FORK/AB7 90° TIE ROD FOR DIN 71752 FORK
Order code:
0005 bis / diam.
ANTI-ROTATION PIN FOR MP2 NARROW REAR FEMALE HINGE PIN
Order code:
0012 / diam.

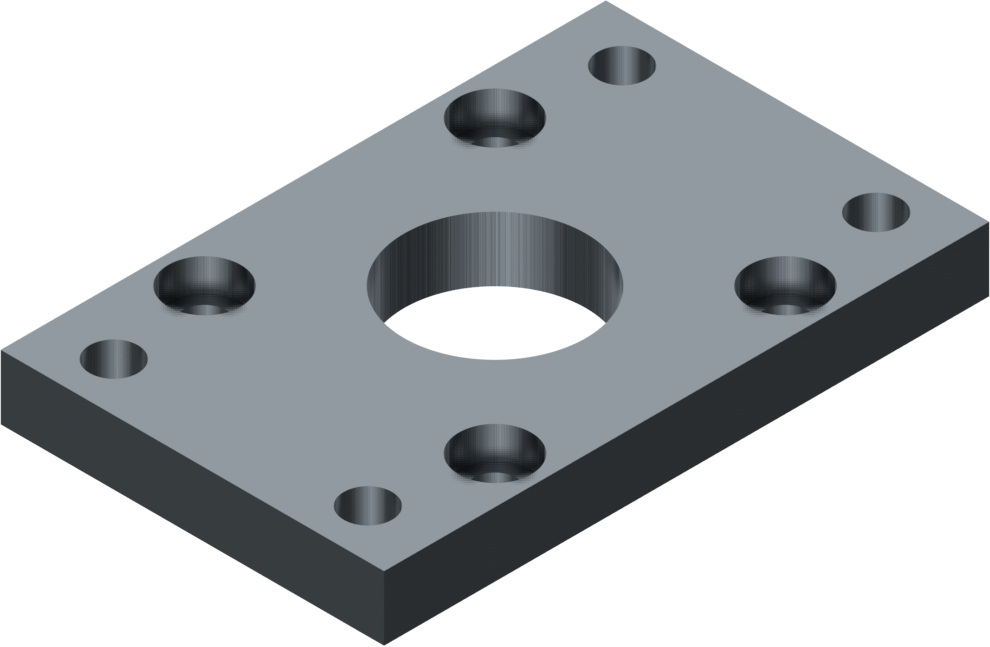

MF2 FLANGE
Order code:
0008 / diam.
MF2 FLANGE
Order code:
0008 bis / diam.
ISO VDMA MF1 - black
Order code:
0008 bis / diam.
SPOT FACED INTERMEDIATE HINGE
Order code:
0076 / diam.
SPOT FACED INTERMEDIATE HINGE 1
Order code:
0076 / diam.
ISO MT4 ADJUSTABLE ROUND INTERMEDIATE HINGE
Order code:
0009 reg / diam.
ISO MT4 THREADED ROUND INTERMEDIATE HINGE
Order code:
0009 / diam.
MT4 INTERMEDIATE HINGE SUPPORT
Order code:
0058 / diam.
MS1 LOW-RISE PEDESTAL
Order code:
0006 / diam.
SHAPED ROUND INTERMEDIATE HINGE
Order code:
0001 / diam.
LOW-RISE PEDESTAL - WIDE
Order code:
0027 / diam.
MP2 FRONT FEMALE HINGE
Order code:
0002 / diam.
